Sound Barrier Curtain Kits with Track

Sound Barrier Curtains for Noise Control - Dual Sided SCC-9, SCC-10, and SCC-11

Sound barrier curtains are essential materials for blocking sound and reducing noise levels. These materials are used to create soundproof walls, ceilings, and enclosures around noisy equipment. We offer a variety of sound-blocking systems and materials suitable for both existing constructions and new builds.

To create an effective soundproof assembly, a combination of soundproofing materials is often required. Using rolls of mass-loaded vinyl, layers of drywall with Green Glue, resilient clips, putty pads, caulk, and door seal kits, you can construct highly effective sound barriers. For existing ceiling grids, or Steel Guard Safety's Sound Shield Barrier Curtains are designed to prevent speech transmission to adjacent spaces. Additionally, our sound barrier blankets and sound absorbing curtains are ideal for heavy-duty industrial sound control, commercial space, warehouses, or factories. For personalized solutions, call us with your specific application needs.

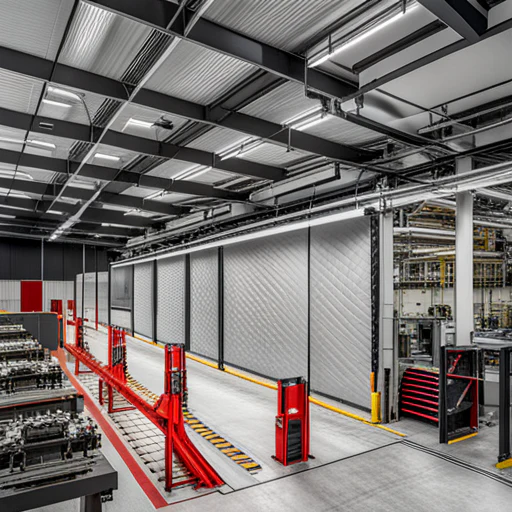

Steel Guard Safety's Sound Shield Industrial Noise Control Curtains feature easy-to-hang grommets on top and hook-and-loop velcro attachments on the sides, allowing for modular construction of any width. You can mount them as stationary sound barriers around industrial equipment or machines, or add dual curtain track hardware (call for extra parts) to create a movable barrier.

Reduce Noise Disturbances on Work Sites

Steel Guard's sound barrier curtains as a solution to combat noise pollution on worksites. These innovative QuietSite Noise Barriers absorb and reflect sound, effectively reducing perceived noise levels (dBA).

Occupational noise poses a safety risk to work crews and affects the public near job sites. Our temporary sound barrier walls can reduce everyday construction noises by up to half, changing the perceived sound of a 90 lb. jackhammer breaking up concrete to that of a household blender. These sound absorbing curtains are useful in multiple applications, allowing compliance with state or local noise ordinances.

The Sound Shield SCC-9 is and Sound Absorber Curtain with Quilted Fiberglass. The SCC-10 and SCC-11 Combination adds that, which is a sound barrier curtain used to block and absorb sound for interior applications. These sound blocking curtains feature a mass-loaded vinyl core (1 lb/sq ft or 2 lb/sq ft) encapsulated with a 1" quilted fiberglass batting on the front and back, allowing for both sound absorption and attenuation on both sides.



CALL FOR CUSTOM SIZES

Sound Curtain Panels

• Sound blanket panels in 4′ widths with 8', 9' and 10' heights or custom lengths as required (Call)
• #4 Grommets along top hem
• Mating Velcro® on vertical edges (This allows the blankets to overlap and create a sound seal.)
• Track Hardware Kit Option - Includes Qty 1 - 4 ft Straight Track, Qty 5 Nylon Rollers, Qty 2-End Stops, and Qty 2-Universal Mount In-line Connectors (for Threaded Rod, Chain, or Wall Mounting)
• Track Kits Connect Modularly for Whatever Length needed.
• Sound Curtain Meets ASTM E-84 for Indoor Use
• Other Configurations Available (Call)

            SOUND ABSORPTION (HZ) PER ASTM C423

Model Number	125	250	500	1000	2000	4000	NRC
SCC-9	.19	.99	.96	.80	.57	.33	.86
SCC-10 & SCC-11	.18	.62	.89	.84	.60	.45	.75



            SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413

Model Number	MLV Barrier	125	250	500	1000	2000	4000	STC
SCC-9	None	6	11	15	20	25	32
SCC-10	1 lb.	12	16	27	40	44	43	29
SSC-11	2 lb.	19	22	28	40	56	61	33



Ships 7 - 10 Business Days
