Industrial Noise Control Acoustic Wall Blanket

Acoustic Wall Blankets Reduce Noise in Industrial Commercial & Studio Environments

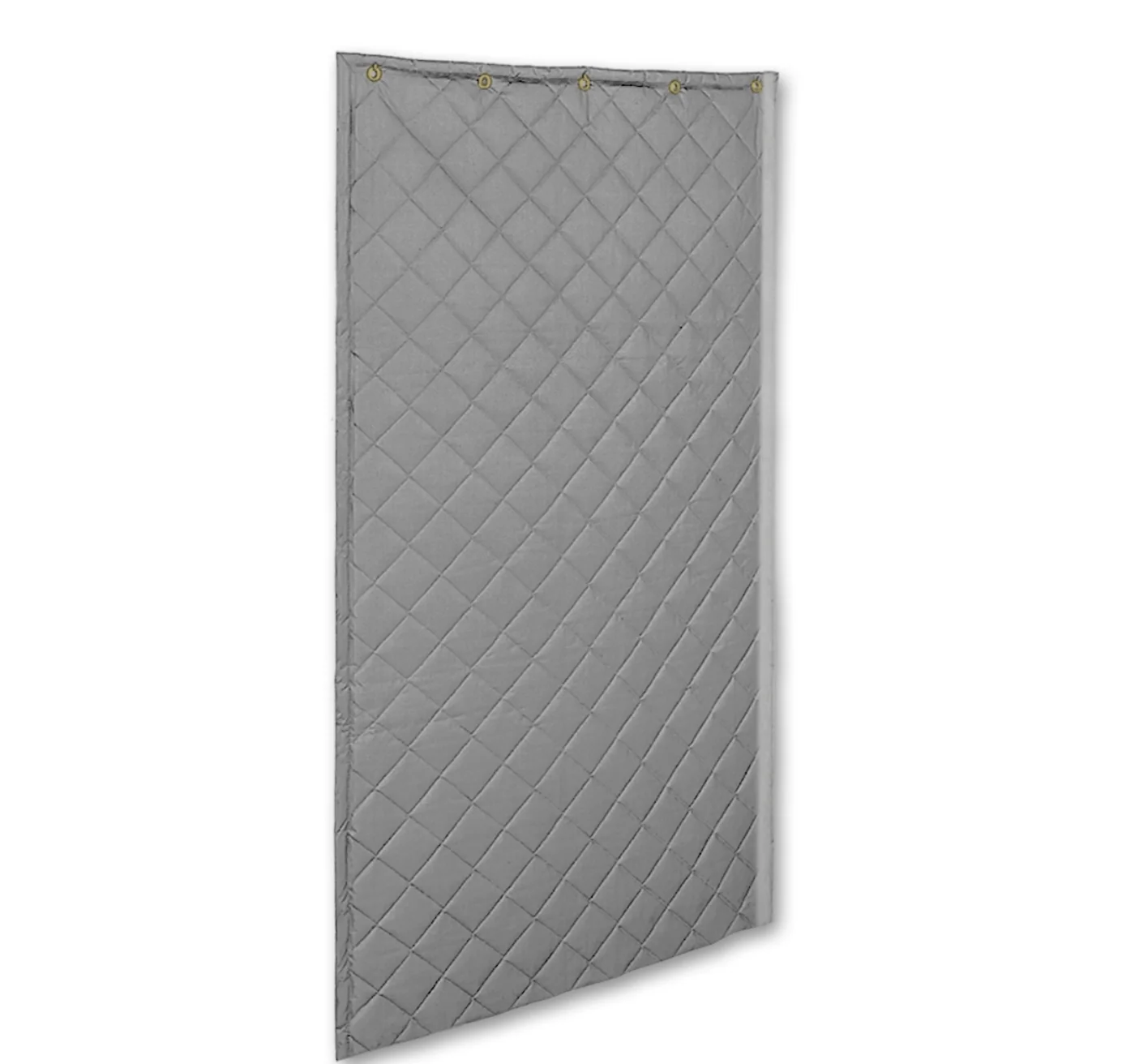

Steel Guard Safety's Sound Shield Acoustical Wall Blanket features easy attachment with brass grommets. Quilted vinyl on one side w a 1" thick or 2" Thick Quilted Fiberglass Panels to choose from. These Panels are a Highly Effective and Cost Conscience way for Soundproofing Walls and rooms.

This lightweight easy to move substrate features up to 21 dB of noise reduction at 4000 Hz  with 1" Thick (NRC-.75) and 32 dB noise reduction with the 2" Thick Panels (NRC-.86) Quilted Vinyl side is resistant to grease, oil, water, and other chemicals. Meets NFPA-701 & ASTM E84 Class 1  for flame resistance



Details:

• 1 inch and 2 inch Nominal Thick Panels (where the product is quilted the thickness is compressed some)

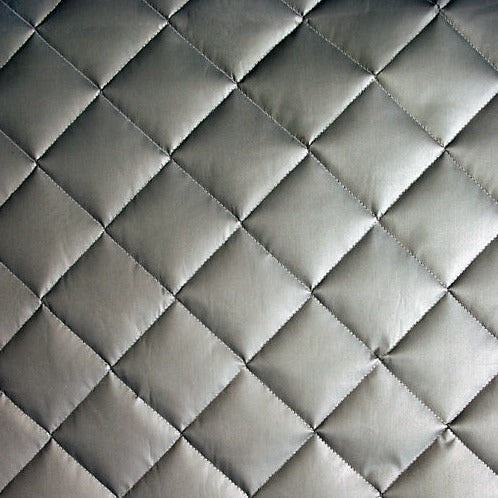

• Vinyl Coated Material Quilted Over Fiberglass Substrate
• Hemmed on All Four Sides
• #2 Brass Grommets set 1 ft on Top & 2 ft on Sides

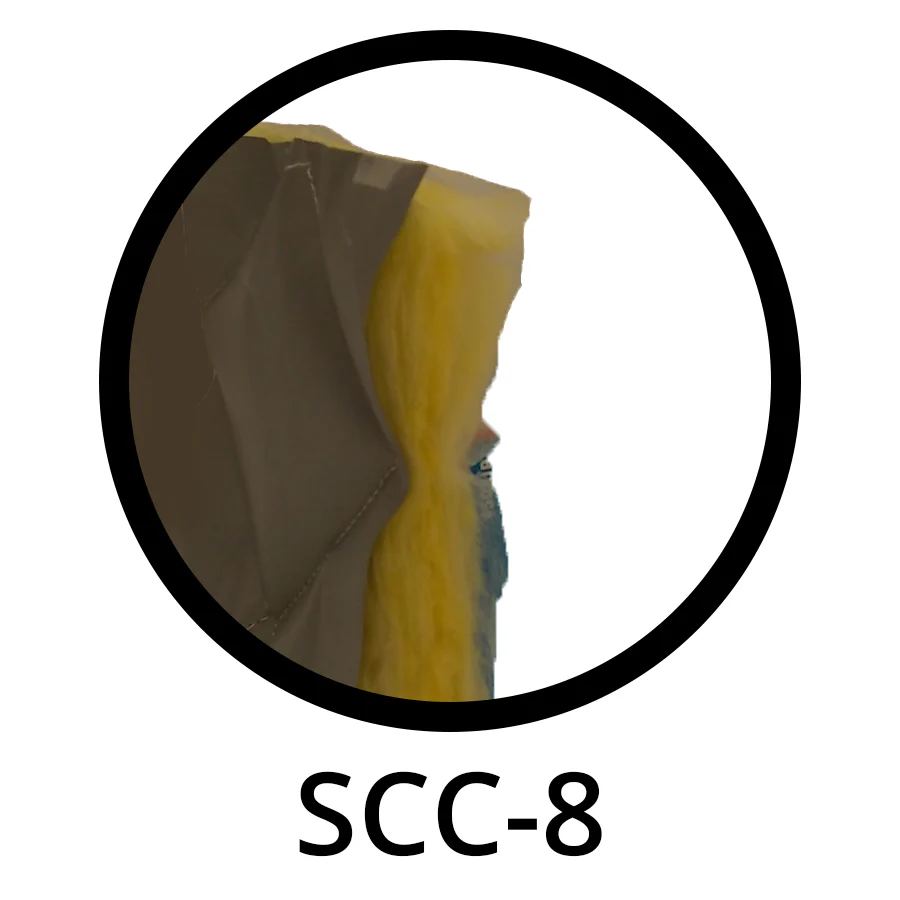

• SCC-8 - 1 in Thick - NRC -.75 (See More Details in Technical Specs)

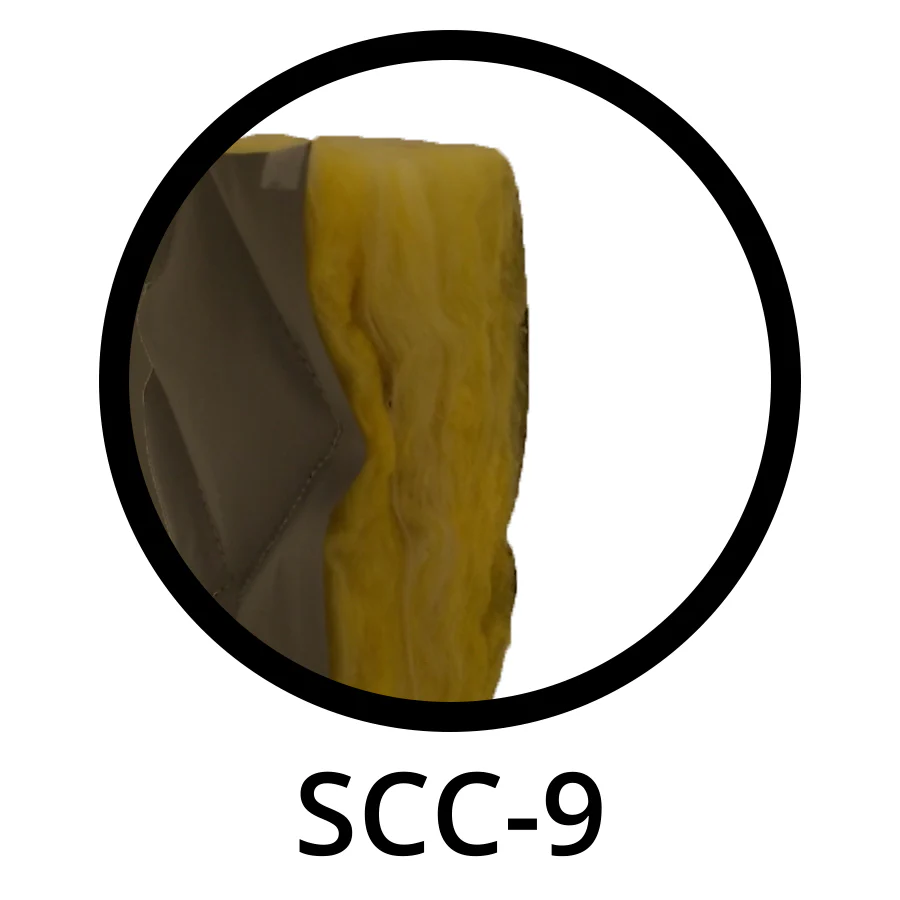

• SCC-9 - 2 in Thick - NRC -.86 (See More Details in Technical Specs)



            SOUND ABSORPTION (HZ) PER ASTM C423

Model Number	Thickness	125	250	500	1000	2000	4000	NRC
SCC-8	1″	0.12	0.47	0.85	0.84	0.64	0.62	0.75
SCC-9	2″	0.19	0.99	0.96	0.80	0.57	0.33	0.86



            SOUND TRANSMISSION LOSS (HZ) PER ASTM E90-75

Model Number	Thickness	125	250	500	1000	2000	4000	STC
SCC-9	2″	11	16	24	30	35	35	19



Applications Acoustic Blankets

• Restaurants
• Reception halls
• Office environments
• Recording studios
• Gyms
• Home theaters
• Museums and exhibits
• Classrooms and schools
• Auditoriums and assembly halls
• Interview rooms
• Churches and houses of worship



Ships in 5 - 8  Business Days
