Industrial Soundproof Curtains for Noise Control - Reinforced MLV

Soundproof Curtains for Industrial Noise Control SCC-12 and SCC-13

Steel Guard Safety's SCC-12 and SCC-13 Sound Shield Industrial Noise Control Curtains features easy hanging grommets on top and hook and loop velcro attachments on the sides to modularly make any width. Mount them as stationary Sound Barriers around Industrial Equipment or Machines, or add single track hardware to hang or dual curtain track hardware (sold separately) to make a moveable barrier.

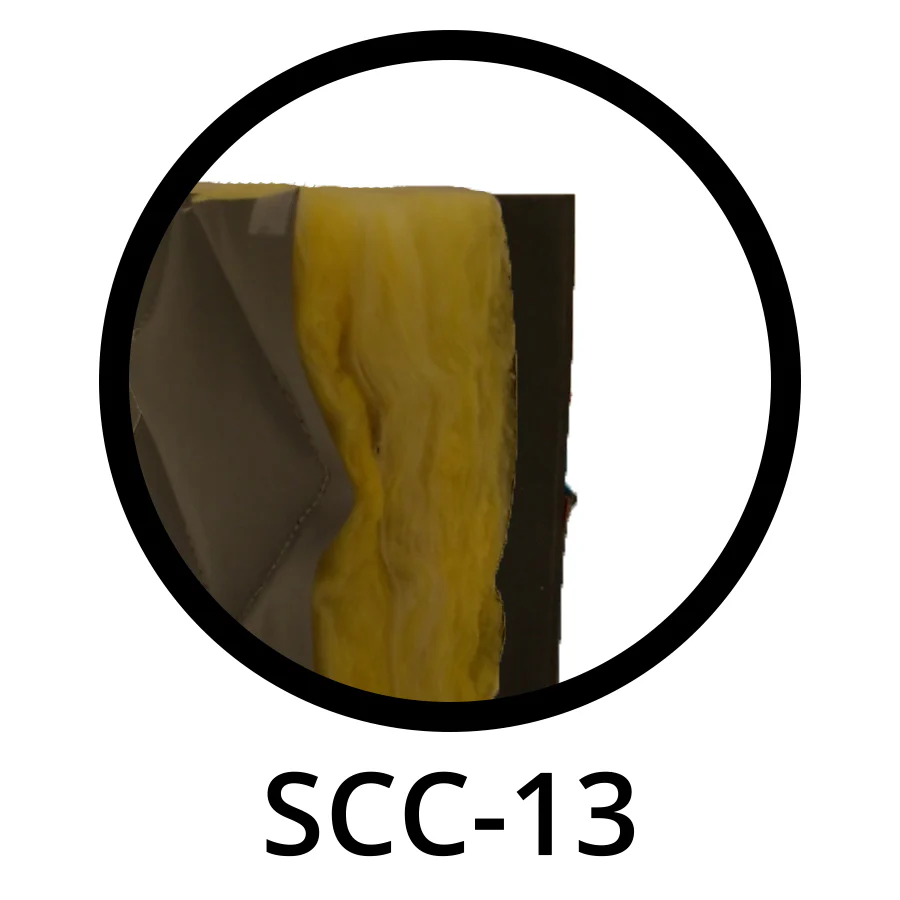

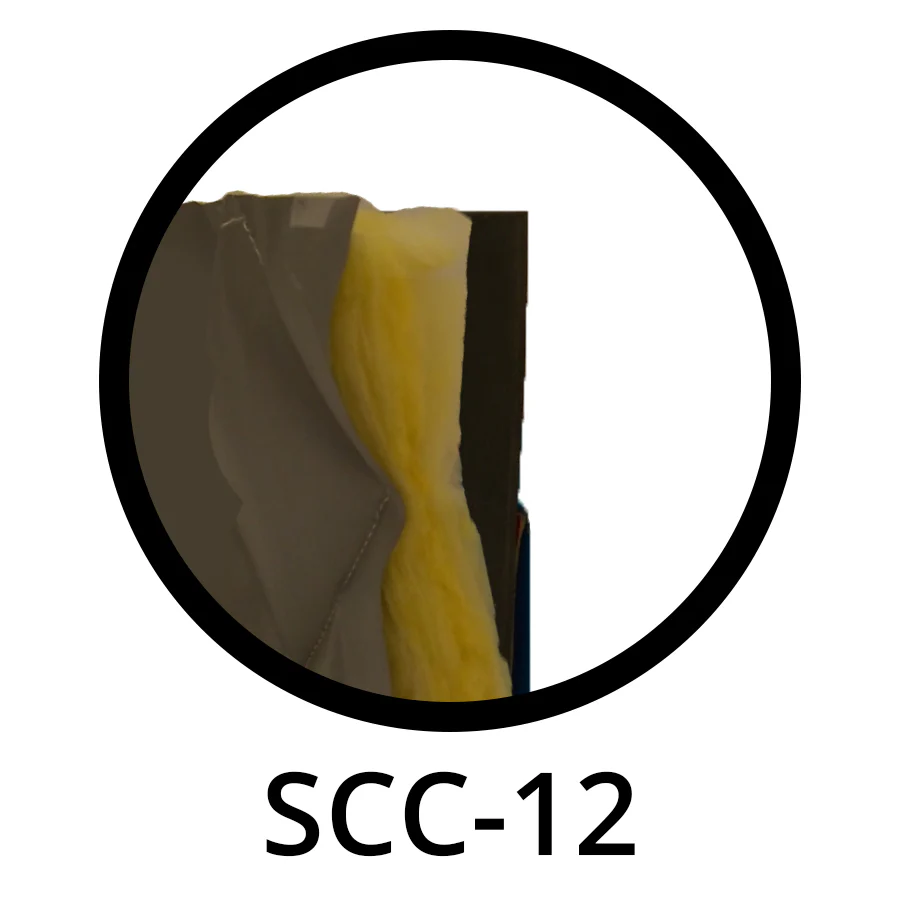

The Sound Shield SCC-12 and SCC-13 Sound Blanket is a sound barrier curtain panel used to block and absorb sound for interior applications. The curtain has a reinforced mass loaded vinyl of 1 lb / sq ft on the back side, and a 1" or 2" thick quilted fiberglass batting on the front side, ideal for absorbing and blocking sound on the inside of an enclosure.

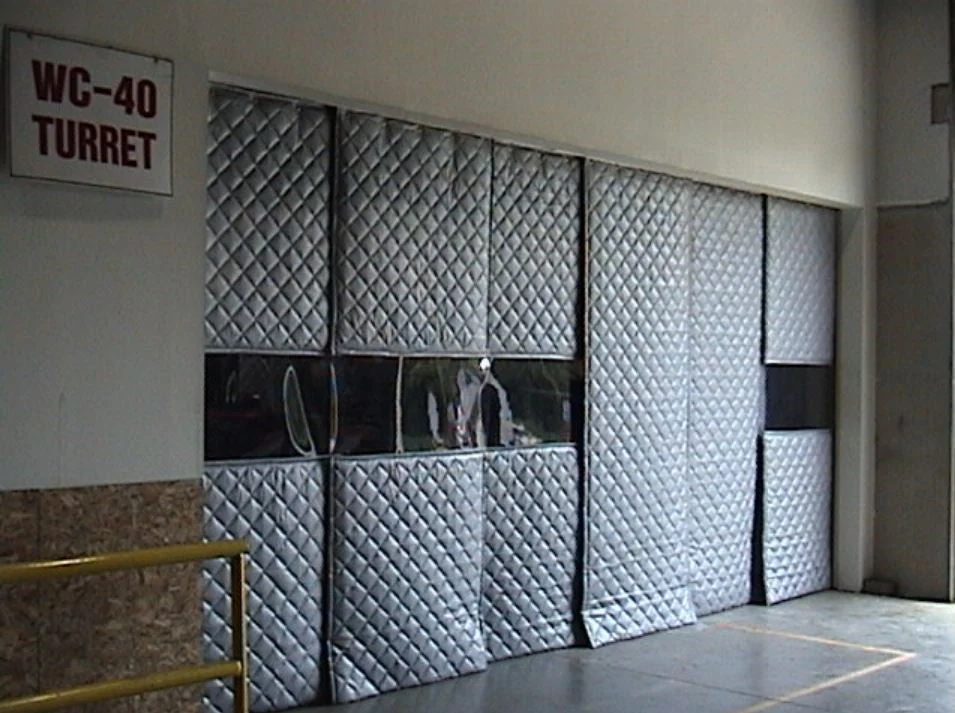

Generally used to temper and block noise in industrial environments, these curtain-blankets are commonly used as separator walls or divider partitions and to create and enclosure. The  SCC-12 & SCC-13 Sound Shield Soundproof Curtains are Class 1 fire-rated and are a double duty sound blanket in that they work for both absorbing and blocking sound.

CALL FOR CUSTOM SIZES

Sound Blanket Panels

• Sound blanket panels in 4′-6" widths with 8', 9' and 10' heights or custom lengths as required (Call)
• #4 Grommets along top hem
• Mating Velcro® on vertical edges (This allows the blankets to overlap and create a sound seal.)

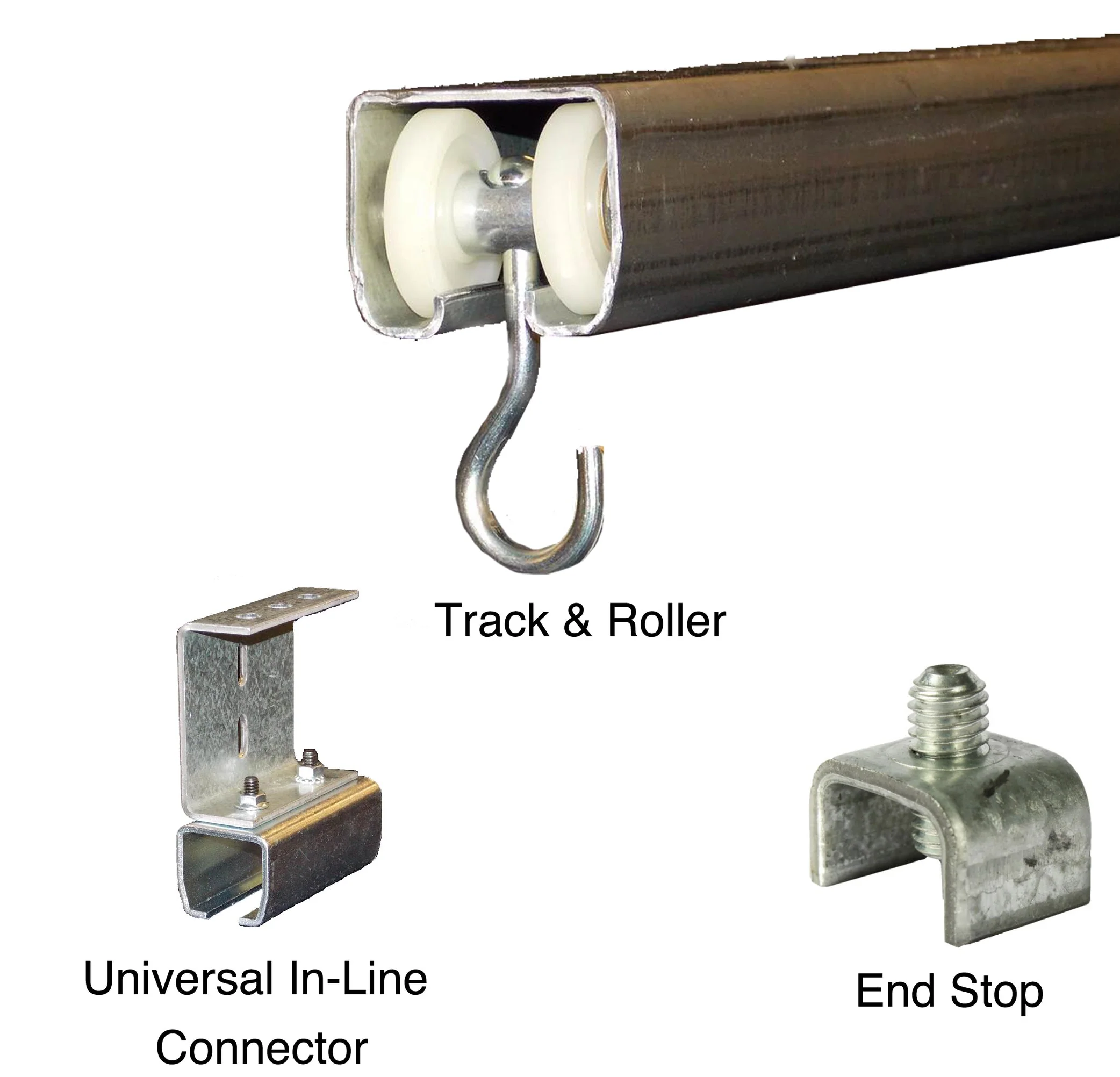

• Track Hardware Kit Option - Includes Qty 1 - 4 ft Straight Track, Qty 5 Nylon Rollers, Qty 2-End Stops, and Qty 2-Universal Mount In-line Connectors (for Threaded Rod, Chain, or Wall Mounting)
• Track Kits Connect Modularly for Whatever Length needed.
• Other Configurations Available (Call)



             SOUND ABSORPTION (HZ) PER ASTM C423

Model Number	Thickness	125	250	500	1000	2000	4000	NRC
SCC-12	1″	0.12	0.47	0.85	0.84	0.64	0.62	0.70
SCC-13	2″	0.07	0.27	0.96	1.13	1.08	.99	.85



           SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413

Model Number	Thickness	125	250	500	1000	2000	4000	STC
SCC-12	1″	11	16	24	30	35	35	27
SSC-13	2″	13	20	29	40	50	55	32



Ships 10 - 15 Business Days
