Air Compressor Sound Enclosure

Air Compressor Sound Enclosures – Modular, Acoustic Box Systems for Noise Control - FREE SHIPPING

Steel Guard Safety’s Air Compressor Sound Enclosures are modular acoustic systems designed to enclose your compressor in a high-performance sound barrier—without restricting airflow or access. These quilted acoustic enclosures form a complete box with roof coverage, significantly reducing noise levels while allowing maintenance and ventilation.

Constructed with durable, sound-absorbing composite materials, each panel is engineered to block and absorb noise while maintaining equipment performance. The modular design creates a full 360° barrier around your compressor, making it safer for nearby workers and reducing exposure to disruptive sound in surrounding areas.

Suitable for both indoor and outdoor use, this weather-resistant enclosure is built to last and tailored to your compressor’s dimensions. Ideal for factories, mechanical rooms, warehouses, and workshops aiming to meet OSHA noise standards and improve workplace comfort.

---

Key Benefits of Our Air Compressor Sound Enclosures

✔️ Noise Reduction up to 20 dB – High-STC acoustic panels significantly reduce sound transmission
✔️ Modular & Customizable Design – Tailored to fit any compressor size, layout, or configuration
✔️ Easy Access Panels & Doors – Quick access to service points, controls, and ventilation areas
✔️ Durable Industrial Construction – Built with galvanized steel frames and multi-layer acoustic composites
✔️ Ventilation & Airflow Control – Integrated baffle systems prevent overheating without compromising sound reduction

Compressor noise levels often exceed OSHA’s 85 dB exposure limit. Our enclosures help you stay compliant while protecting your team.
OSHA Noise Guidelines

Air Compressor Sound Enclosure Details

• Acoustic Enclosures Are Made from 4'6" Wide Panels to Modularly fit together. Short panels finish Odd Sizes

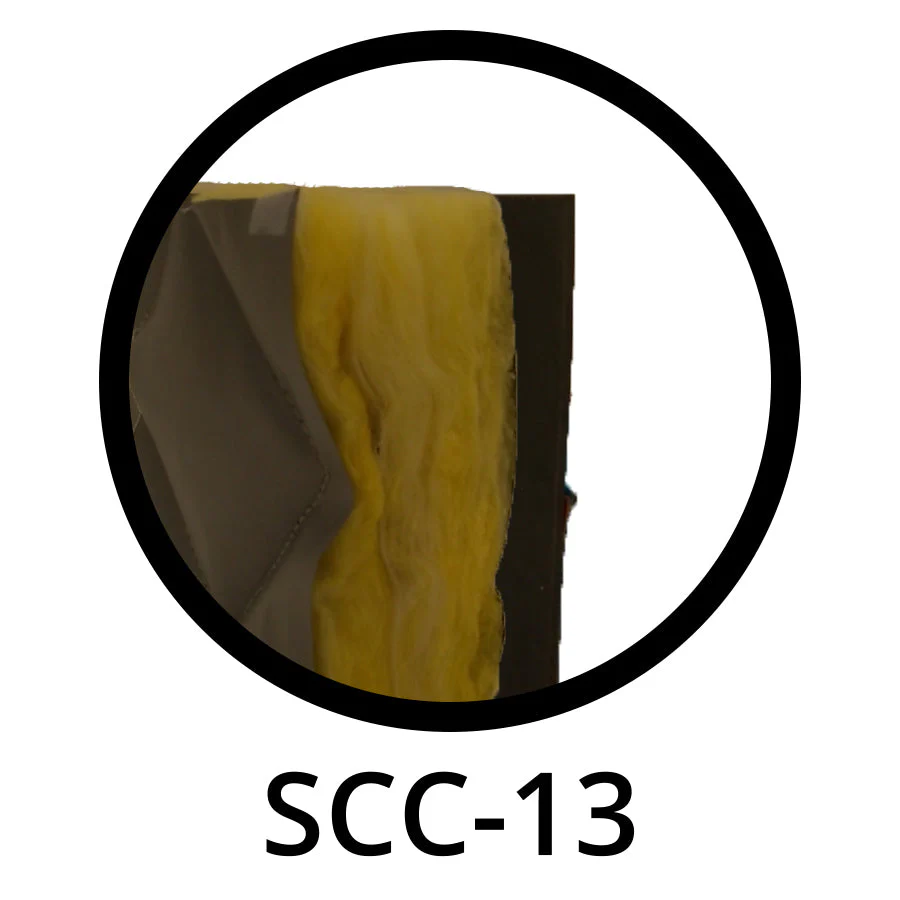

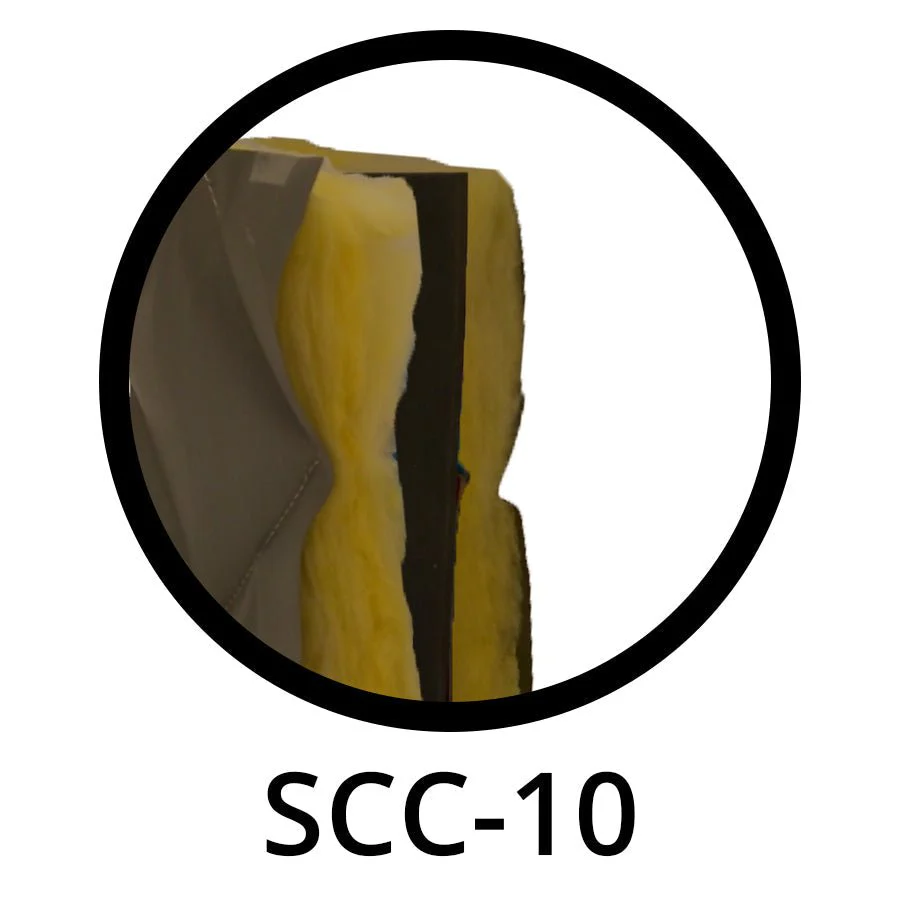

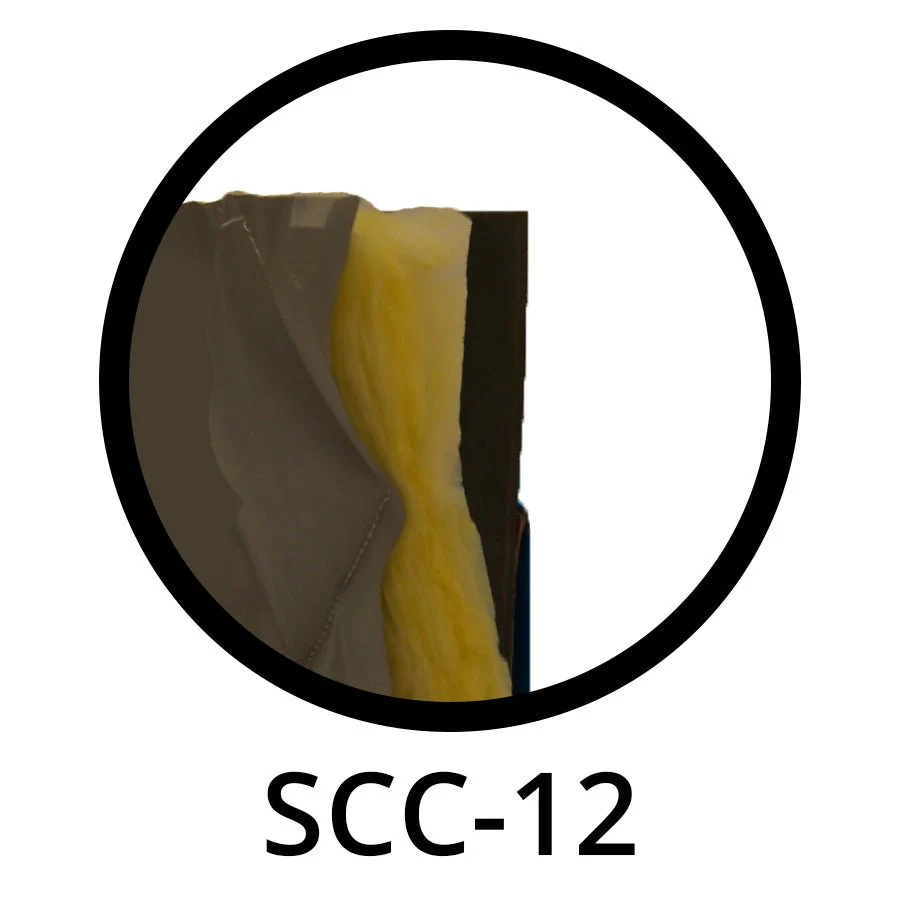

• Choose from SCC-10, SCC-12 or SCC-13 Sound Shield Material with MLV
• #4 Grommets along top hem
• Mating Velcro® on vertical edges (This allows the blankets to overlap and create a sound seal.)

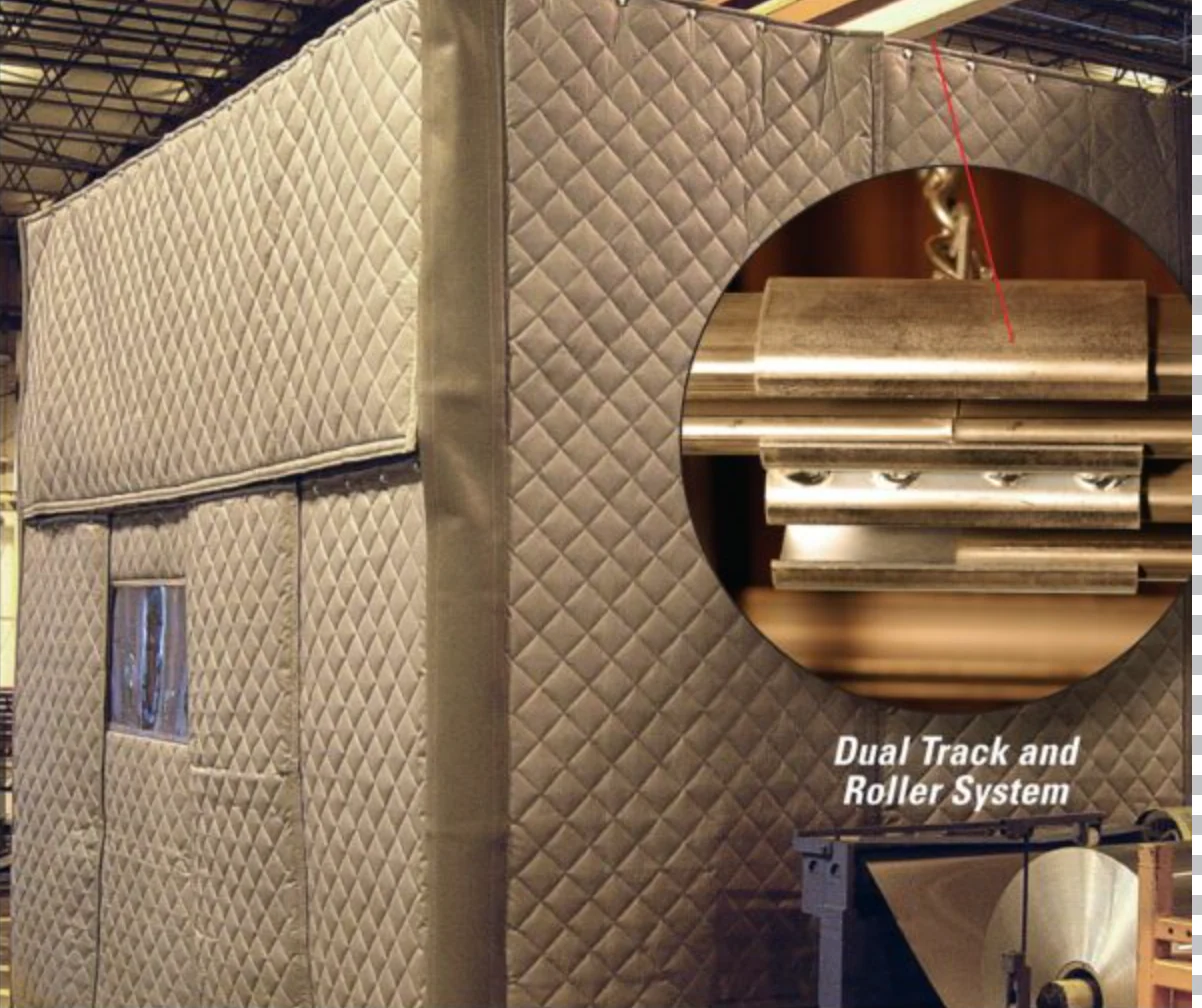

• Floor Mount Track Hardware - Includes Qty 1 - 4 ft Straight Track,  Nylon Rollers, End Stops, Corner & Straight Connectors, Base Plates, Legs, and Part for Roof (Optional)
• Track Kits Connect Modularly for Whatever Length needed.
• Other Configurations Available (Call)

For Portable and Moveable Protection check out our Portable Sound Enclosures that roll away



             SOUND ABSORPTION (HZ) PER ASTM C423

SOUND TRANSMISSION LOSS (HZ) PER ASTM E90 & E413

Model Number	Thickness	125	250	500	1000	2000	4000	STC
SCC-10	2"	12	16	27	40	44	43	29
SCC-12	1″	11	16	24	30	35	35	27
SSC-13	2″	13	20	29	40	50	55	32
